Slim Micro Duplicators

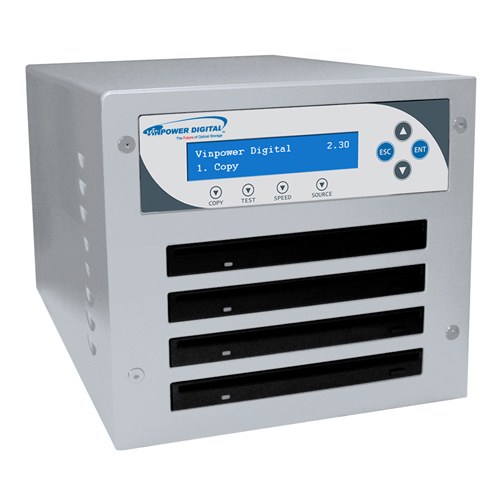

Slim Micro Duplicator w/ 1TB HDD - 4 Target


- Network Capable
- Free USB CopyConnect & Copy Protection
- Support Blu-ray, DVD, DVD DL & CD Formats

P/N: SlimMicro-BD-S4T
Icon in stock In Stock
Icon 2 yr warranty 2 Years Limited
Icon gift Free Blank Media Sample Pack
Icon truck Free Shipping
$2,500.00   $1,999.00

Slim Micro Duplicator w/ 1TB HDD - 4 Target


- Network Capable
- Free USB CopyConnect & Copy Protection
- Support Blu-ray, DVD, DVD DL & CD Formats

P/N: SlimMicro-BD-S4T
Icon in stock In Stock
Icon 2 yr warranty 2 Years Limited
Icon gift Free Blank Media Sample Pack
Icon truck Free Shipping
$2,500.00   $1,999.00

The SlimMicro Blu-ray/CD/DVD duplicator is the perfect blend of style, performance and convenience. Offering the exceptional duplication capabilities and added features of our top of the line SharkNet series, the compact size of this 4 target duplicator is a space saver and is much easier to travel with. Offering 4 slim writer Blu-ray drives with a large hard drive offers quick reliable production anywhere there is an electrical outlet.

In addition to the space saving nature of the SlimMicro duplicator, this network duplicator also comes standard with many exceptional features such as Network Capable, CopyConnection with USB 3.0/2.0 and DVD video CopyProtection as well as many other exceptional features that are original to Vinpower Digital duplication products.  If quality and performance are important, and you require something more compact in size, then the SlimMicro series is the perfect solution.

  • Complete Standalone Operation:
    No PC required to operate the duplicator.
  • New Copy Protection:
    Able to create copy protected DVD Video copies from an original master using the Copy Connect feature. Transfer image files with the embedded protection directly from a PC to the duplicator's internal HDD.
  • New Transfer files from any PC within an internal Network directly to the duplicator:
    Connect the duplicator to the company's internal network by LAN/Ethernet connection and transfer the image or file(s) that need to be duplicated directly to the duplicator. No longer need to burn a master disc to initiate the duplication process.
  • New USB Copy Connect:
    Able to transfer image files directly from a PC to the duplicator's internal HDD. No longer need to burn a master disc to initiate the duplication process.
  • Improved Load and Copy Supported:
    Improved "Load and Copy" to make duplication from Hard Drive faster than ever by simultaneously copy into the blank media while Loading to the hard drive
  • New Continuous Hard Drive Partitioning:
    The HDD partitions are created without limitations using the same amount of space as the actual content size on the disc. No longer do you have to worry about loosing valuable HDD capacity because your duplicator allocates the exact space required without wasting space like standard partitions on other controllers.
  • Industry leading 128MB buffer memory:
    Keeps all drives burning without pausing (known as buffer underrun) for the most stable and reliable high speed duplication - The higher the memory buffer the less likely to encounter buffer underrun errors.
  • New Supports all common CD Formats with Additional Special format including CD-TEXT, ISRC, Over-Burned CD.
  • Improved Drive firmware upgradeability:
    Capable of upgrading the drives for selected brands through the Duplicator.
  • Improved Multi-Language capability:
    The text on the LCD screen can be displayed in English, Spanish, French, Japanese & more. Chinese can be added upon request.
  • BD Safe Copy* :
    Improves recording and playback compatibility, especially for lower quality BD media.
  • AutoCopy feature:
    Fast duplication without pressing any buttons.
  • Account management (password protection):
    This function will authorize only specific user(s) to operate the duplicator with their preferred settings. Able to assign numerous passwords for multiple users.
  • Auto-Counter Technology:
    Displays the total number of discs successfully copied compared to desired output for each project.
  • Auto DVD Format Conversion:
    Can convert media between DVD+R/RW and DVD-R/RW automatically.
  • Hard Drive Partition/Image Name Editing:
    Simply stated you can name the images stored on the hard drive partitions.
  • User friendly interface with 'easy-to-read' LCD display:
    Offers easy to recognize and use terms and operations on the LCD display for simple usage.
  • Fast Key feature:
    4 fast keys for faster operations.
  • Power on Self diagnostics:
    Keeps the duplicator functioning optimally.
  • Disc Info feature:
    Provides the format of the disc & the disc manufacturer's information.
  • Selectable Disc burning speeds:
    Ability to increase or decrease duplication speed for supported formats.
  • Creates mix compilation audio CD:
    Able to compile multiple tracks onto a single disc from multiple sources.
  • Supports both Disk-at-Once and Track-at-Once modes
  • Automatic format Recognition:
    Can convert media between DVD+R/RW and DVD-R/RW automatically.
  • Upgradeable for future drive technology:
    Able to upgrade duplicator for installation of future drives.
  • Future functions upgradeable through firmware:
    Duplicator able to upgrade future software updates via Firmware.
  • Continuous copying without waiting for cool down:
    No need to stop the duplicator for fear of overheating.

*This feature only applies to Blu-ray models when making Blu-ray copies. Additionally, the added mechanism will reduce the overall duplication speed.

Model: Slim Micro SATA Blu-ray / DVD / CD Tower Duplicator
MPN: SlimMicro-BD-S4T
Operating Type: Stand-alone
Targets: 4
Buffer Memory: 128MB
Account Management: 32 users (Standard License) or 64 users (Premium License)
Partition Naming: Up to 14 Characters Per Partition
Internal Interface: SATA
Auto Counter: Yes
Language Support: English, Spanish, French, German, Italian, Japanese, and more
(Chinese can be ordered on request)
Display: 20 x 2 Blue LCD
Hard Drive: 1 TB
Featuring Recorder: Slim 6x SATA Blu-ray/DVD/CD Writer
Maximum Write Speed:
BD-R: 6x BD-RE: 2x
BD-R DL: 4x BD-RE DL: 2x
DVD-R: 8x DVD-RW: 6x
DVD+R: 8x DVD+RW: 8x
DVD-R DL: 4x DVD+R DL: 4x
CD-R: 24x CD-RW: 10x
DVD-RAM: 5x
Formats Supported BD-ROM, BD-R, BD-RE,
BD-R Double Layer, BD-RE Double Layer
DVD-ROM, DVD-RAM, DVD-Video, DVD-Audio
DVD-R, DVD-RW, DVD+R, DVD+RW
DVD+R Double Layer, DVD-R Dual Layer ,
CD-ROM (Mode1 & Mode2)
CD-ROM/XA (Mode2 form1 & form2)
CD-DA, Mixed-Mode
Video CD, CD-I, Karaoke CD(VCD)
Photo CD (Single & Multi-session)
CD-Extra, HFS, CD-Brid
ISO9660, CD-R, CD-RW
3" Mini CD-R
Network Requirement: Network Port: RJ-45 x 1;
Network Speed: 10/100/1000Mbits;
Additional Ports: USB 3.0;
OS Support: Windows 2000, XP, Vista 32 Bit
Firmware Upgradable: Yes
Burn Proof Support: Yes
Physical Size: Width 7" x Depth 10" x Height 6.5"
Weight 10 lbs
Power Supply: Input : 90 ~ 240 V
Operating Humidity: 20% ~ 80%
Temperature Extremes: 40oC (104oF) / 5oC (41oF)
Regulation: FCC, CE, RoHS
Manufacture: Vinpower Digital
Throughput Capacity Per Hour:
Target 4 5
700 MB CD
*at 24x duplication speed
52 65
4.7 GB DVD
*at 8x duplication speed
28 35
12.5 GB Blu-ray
*at 6x duplication speed
20 25

Important Notice
    • No modifications are available.

    • The duplicator will not copy any copy-protected or encrypted disc(s).

  • The actual maximum writing speed may vary. Blank media writing speed is determined by the drives, regardless of what the media manufacturer certifies the blank media writing speed at.
About Copy Protection
Vinpower Digital has developed the first true standalone duplicator which can offer embedded copy protection. The unique CopyLock Software can embed a proprietary CPS copy protection encryption into any DVD video master through a PC, which will produce a VCP or OCP protected image file. The VCP or OCP protected image file can then be transferred onto a CPS enabled Vinpower Digital duplicator to produce as many copy protected reproductions as the user needs. Since the CPS technology is software based as opposed to hardware based, there are no issues with compatibility with players, unlike competing protections on the market. In addition, the CPS technology offers the same secure protection against unauthorized duplication and ripping for a double dose of protection whereas similar applications from competitors cannot block ripping.

The difference between the VCP and OCP formats is that the VCP requires a license dongle in order to add the protection onto the discs and the OCP does not require any licenses as long as true OptoDisc MID media are used during the duplication process. So the VCP has an added cost, but allows you to use any media you'd like and the OCP has no added costs as long as you use OptoDisc manufactured media.

In today's savvy hi-tech world, consumers are often purchasing a single video and making copies for their friends which limit the overall sales. If you worked hard and put in a lot of effort and expense into creating your video project, you shouldn't be restricted in the number of units you can sell because you can't afford the high price of replicated copy protection. Instead, by using Vinpower Digital's CPS technology, you can feel secure at a fraction of the expense with the VCP format or FREE with the OCP format in less time with no minimum or maximum quantities required.

Flow Chart:
CopyProtection Flow Chart
How the FREE OCP Copy Protection Works:
  1. Load the supplied CopyLock software onto a suitable PC.
  2. Take your DVD video master disc or file and use the copy protection software application to make an OCP master image file; follow the steps of the software to embed the copy protection onto the master content.
  3. Transfer OCP file through 1 of the 2 options below:
    • Burn the OCP file onto a master disc
    • Transfer the new OCP image file from the PC onto an enabled duplicator via USB w/ CopyConnect or LAN/Networkconnectivity if available
  4. Load blank DVD recordable discs with the OptoDisc MID into the duplicator's writer drive(s) then place the OCP master disc into the top reader tray or
    locate the transferred OCP image file through the duplicator's menu keys from the internal hard drive if available
  5. Initiate the copy process and when the finished discs are all successfully copied, these discs will have the secure copy protection already embedded.
How the VCP Format Copy Protection Works:
  1. Load the supplied CopyLock software onto a suitable PC.
  2. Plug in the CPS USB dongle with activated licenses into your PC's USB socket.
  3. Take your DVD video master disc or file and by utilizing the special CPS application, follow the steps to embed the copy protection onto the master content.
  4. Transfer VCP file through 1 of the 2 options below:
    • Burn the VCP file onto a master disc
    • Transfer the new VCP image file from the PC onto an enabled duplicator via USB w/ CopyConnect or LAN/Networkconnectivity if available.
  5. Load blank DVD recordable discs into the duplicator's writer drive(s) then then place the VCP master disc into the top reader tray or locate the transferred VCP image file through the duplicator's menu keys from the internal hard drive if available.
  6. Initiate the copy process and when the finished discs are all successfully copied, these discs will have the secure copy protection already embedded.
