Karaoke CD+G Duplicators

Karaoke Mix Pro CD DVD / CD+G Duplicator - 1 to 13

- Supports CD+G, Super CD+G, DVD, DVD DL and CD Formats

P/N: Karaoke-S13T

In Stock

2 Years Limited

Free DVD Blank Media Sample Pack

Free Shipping

~~$1,820.00~~ $1,455.00

20% Off

Karaoke Mix Pro CD DVD / CD+G Duplicator - 1 to 13

- Supports CD+G, Super CD+G, DVD, DVD DL and CD Formats

P/N: Karaoke-S13T

In Stock

2 Years Limited

Free DVD Blank Media Sample Pack

Free Shipping

~~$1,820.00~~ $1,455.00

Duplicator Case Color

Hard Drive Selection:

Optional USB Device:

Rapid Exchange Warranty

Extended Warranty

Copy Protection Dongle:

Karaoke is not only a popular social activity but a booming business as well. Sales for Karaoke CD's, also known as CD+G (audio + graphics), have continued to rise from the local karaoke bar to the individual collector, all needing to build upon their library. With the attractiveness of limited edition copies and rare collectibles, many Karaoke DJ's and collectors want to create high quality back-up discs to protect the originals. In addition, they are tired of carrying around their entire collection when they only need specific tracks from each disc and wish they had a stable way to make high quality compilation discs. Vinpower Digital has solved these pressing needs with our new Karaoke Mix Pro II single drive CD+G/DVD/CD duplicator.

The Karaoke Mix Pro II uses high quality DVD drives with a built in hard drive (HDD) for the highest quality duplication. The optimized Vinpower Digital controller provides exact digital duplication with the highest resolution and no distortion. With the simplified interface in a standalone (no PC connection) compact case, anyone can operate this unit anywhere with an electric outlet. The Karaoke Mix Pro II duplicates all DVD and standard CD formats as well; such as DVD9, DVD5, Audio CDs, Data CDs, VCDs, etc. There are many unique convenient features included such as Firmware upgradeability, Mix Compilation capability, HDD Image Name Editing, and much more.

Complete Standalone Operation:

No PC required to operate the duplicator.
Improved Copy CD+G format:

Able to make back-up copies of CD+G format discs.
New Creates mix compilation CD+G Disc:

Able to compile multiple CD+G tracks onto a single disc from multiple sources.
New Supports all currently available DVD media including Double/Dual layer DVD9:

Can duplicate Single Layer DVD±R/RW and Double/Dual Layer DVD±R Formats.
New Supports all common CD Formats with Additional Special format including CD-TEXT, ISRC, Over-Burned CD.
Improved Load and Copy Supported:

Improved "Load and Copy" to make duplication from Hard Drive faster than ever by simultaneously copy into the blank media while Loading to the hard drive

New Continuous Hard Drive Partitioning:

The HDD partitions are created without limitations using the same amount of space as the actual content size on the disc. No longer do you have to worry about loosing valuable HDD capacity because your duplicator allocates the exact space required without wasting space like standard partitions on other controllers.

Industry leading 256MB buffer memory:

Keeps all drives burning without pausing (known as buffer under-run) for the most stable and reliable high speed duplication ?The higher the memory buffer the less likely to encounter buffer under-run errors.

Improved Drive firmware upgradeability:

Capable of upgrading the drives for selected brands through the Duplicator.
Multi-Language capability:

The text on the LCD screen can be displayed in English, Spanish, French, Japanese & more. Chinese can be added upon request.
AutoCopy feature:

Fast duplication without pressing any buttons.
Account management (password protection):

This function will authorize only specific user(s) to operate the duplicator with their preferred settings. Able to assign numerous passwords for multiple users.
Auto-Counter Technology:

Displays the total number of discs successfully copied compared to desired output for each project.
Hard Drive Partition/Image Name Editing:

Simply stated you can name the images stored on the hard drive partitions.
User friendly interface with 'easy-to-read' LCD display:

Offers easy to recognize and use terms and operations on the LCD display for simple usage.
Aluminum Case used to provide a highly functional and attractive exterior:

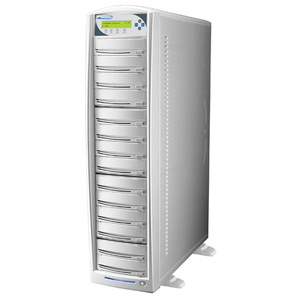

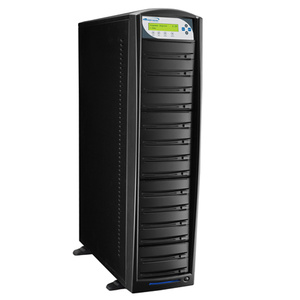

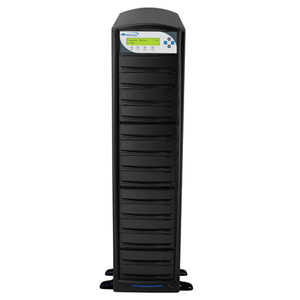

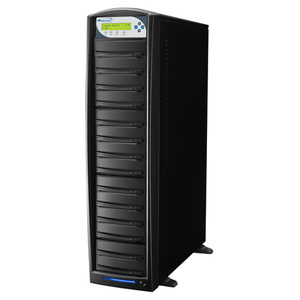

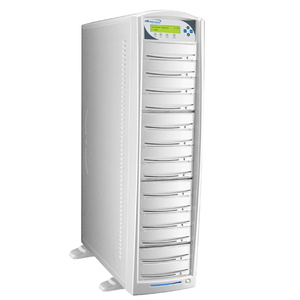

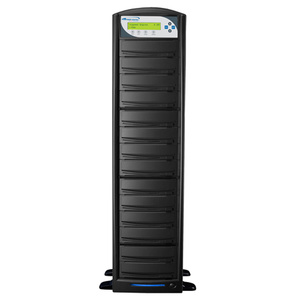

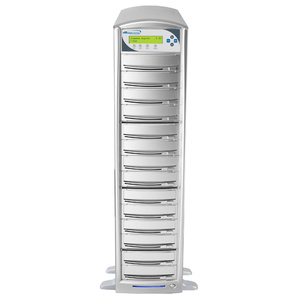

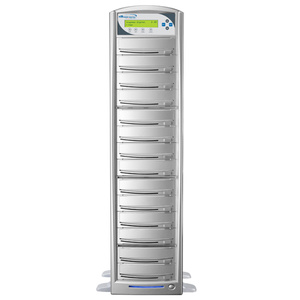

Duplicator casing available in metallic silver or midnight black aluminum casing.
Fast Key feature:

4 fast keys for faster operations.
Power on Self diagnostics:

Keeps the duplicator functioning optimally.
Disc Info feature:

Provides the format of the disc & the disc manufacturer's information.
Selectable CD and DVD burning speeds:

Ability to increase or decrease duplication speed for supported formats.
Creates mix compilation audio CD:

Able to compile multiple tracks onto a single disc from multiple sources.
Auto DVD Format Conversion:

Can convert media between DVD+R/RW and DVD-R/RW automatically.
Supports both Disk-at-Once and Track-at-Once modes.
Automatic format recognition:

Duplicator recognizes automatically if the discs are CD or DVD as well as the correct format to copy.
Upgradeable for future drive technology:

Able to upgrade duplicator for installation of future drives.
Future functions upgradeable through firmware:

Duplicator able to upgrade future software updates via Firmware.

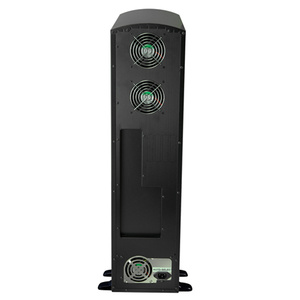

Continuous copying without waiting for cool down:

No need to stop the duplicator for fear of overheating.

Model:

Karaoke Mix Pro CD+G/DVD/CD Tower Duplicator

MPN:

Karaoke-S13T

Operating Type:

Stand-alone

Targets:

Buffer Memory:

256MB

Account Management:

32 users (Standard License) or 64 users (Premium License)

Partition Naming:

Up to 14 Characters Per Partition

Internal Interface:

SATA

Auto Counter:

Yes

Language Support:

English, Spanish, French, German, Italian, Japanese, and more
(Chinese can be ordered on request)

Display:

20 x 2 Blue LCD

Hard Drive:

2 TB (Capable of selecting higher capacity HDD)

Featuring Reader:

Vinpower CD+G Certified DVD-ROM

Featuring Recorder:

Vinpower CD+G Certified 22x DVD/CD Writer

Maximum Write Speed:

DVD-R: 22x	DVD-RW: 6x
DVD+R: 22x	DVD+RW: 8x
DVD-R DL: 12x	DVD+R DL: 12x
CD-R: 48x	CD-RW: 32x

Formats Supported

DVD-ROM, DVD-Video, DVD-Audio
DVD-R, DVD-RW, DVD+R, DVD+RW
DVD+R Double Layer, DVD-R Dual Layer ,
CD-ROM (Mode1 & Mode2)
CD-ROM/XA (Mode2 form1 & form2)
CD-DA, Mixed-Mode
Video CD, CD-I, Karaoke CD(VCD)
Photo CD (Single & Multi-session)
CD-Extra, HFS, CD-Brid
ISO9660, CD-R, CD-RW
Business Card CD-R, 3" Mini CD-R

Firmware Upgradable:

Yes

Burn Proof Support:

Yes

Physical Size:

Width 7" x Depth 21" x Height 30 "
Weight 53 lbs

Power Supply:

Input : 90 ~ 240 V

Operating Humidity:

20% ~ 80%

Temperature Extremes:

40^oC (104^oF) / 5^oC (41^oF)

Regulation:

FCC, CE, RoHS

Manufacture:

Vinpower Digital

Throughput Capacity Per Hour:

Target	1	2	3	4	5	6	7	8	9	10	11	12	13	14	15
350 MB CD *at 48x duplication speed	24	48	72	96	120	144	168	192	216	240	264	288	312	336	360
2.5 GB DVD *at 16x duplication speed	12	24	36	48	60	72	84	96	108	120	132	144	156	168	180

Important Notice

The duplicator will not copy any copy protected discs.

The actual maximum writing speed may vary. Blank media writing speed is determined by the drives, regardless of what the media manufacturer certifies the blank media writing speed at.

Enhanced Load and Copy Supported:
For better efficiency and the best duplication quality. Enhanced Load & Copy is a way to load the master disc on to the Hard Drive while simultaneously copying on to the blank media in the writer drives at the same time for the first run. All other copies will be created from the hard drive for the highest quality. This will greatly speed up the duplication process. It works as shown in the below diagram:

More Synchronous Loading...

Added Shipping Protection:
All duplicators are double packed as shown below with twice as much thick packing foam and cardboard.

A) Strong cardboard outer box to protect the interior box with the duplicator.
B) Interior box for the duplicator which is stored inside protective foam and boxed in sturdy cardboard.
C) Two separate interior supports for the inside box which are made of thick sturdy cardboard and 5 large dense foam supports.

More packing information..

About Copy Protection
Vinpower Digital has developed the first true standalone duplicator which can offer embedded copy protection. The unique CopyLock Software can embed a proprietary CPS copy protection encryption into any DVD video master through a PC, which will produce a VCP or OCP protected image file. The VCP or OCP protected image file can then be transferred onto a CPS enabled Vinpower Digital duplicator to produce as many copy protected reproductions as the user needs. Since the CPS technology is software based as opposed to hardware based, there are no issues with compatibility with players, unlike competing protections on the market. In addition, the CPS technology offers the same secure protection against unauthorized duplication and ripping for a double dose of protection whereas similar applications from competitors cannot block ripping.

The difference between the VCP and OCP formats is that the VCP requires a license dongle in order to add the protection onto the discs and the OCP does not require any licenses as long as true OptoDisc MID media are used during the duplication process. So the VCP has an added cost, but allows you to use any media you'd like and the OCP has no added costs as long as you use OptoDisc manufactured media.

In today's savvy hi-tech world, consumers are often purchasing a single video and making copies for their friends which limit the overall sales. If you worked hard and put in a lot of effort and expense into creating your video project, you shouldn't be restricted in the number of units you can sell because you can't afford the high price of replicated copy protection. Instead, by using Vinpower Digital's CPS technology, you can feel secure at a fraction of the expense with the VCP format or FREE with the OCP format in less time with no minimum or maximum quantities required.

Flow Chart:
CopyProtection Flow Chart

How the FREE OCP Copy Protection Works:

Load the supplied CopyLock software onto a suitable PC.
Take your DVD video master disc or file and use the copy protection software application to make an OCP master image file; follow the steps of the software to embed the copy protection onto the master content.
Transfer OCP file through 1 of the 2 options below:
- Burn the OCP file onto a master disc
- Transfer the new OCP image file from the PC onto an enabled duplicator via USB w/ CopyConnect or LAN/Networkconnectivity if available
Load blank DVD recordable discs with the OptoDisc MID into the duplicator's writer drive(s) then place the OCP master disc into the top reader tray or
locate the transferred OCP image file through the duplicator's menu keys from the internal hard drive if available
Initiate the copy process and when the finished discs are all successfully copied, these discs will have the secure copy protection already embedded.

How the VCP Format Copy Protection Works:

Load the supplied CopyLock software onto a suitable PC.
Plug in the CPS USB dongle with activated licenses into your PC's USB socket.
Take your DVD video master disc or file and by utilizing the special CPS application, follow the steps to embed the copy protection onto the master content.
Transfer VCP file through 1 of the 2 options below:
- Burn the VCP file onto a master disc
- Transfer the new VCP image file from the PC onto an enabled duplicator via USB w/ CopyConnect or LAN/Networkconnectivity if available.
Load blank DVD recordable discs into the duplicator's writer drive(s) then then place the VCP master disc into the top reader tray or locate the transferred VCP image file through the duplicator's menu keys from the internal hard drive if available.
Initiate the copy process and when the finished discs are all successfully copied, these discs will have the secure copy protection already embedded.
